Name: 2-Axis Delta | Small
Brand: igus®
SKU: RBTX-IGUS-0055
Price: 13,004.97 GBP
Availability: InStock

fairBanner

CommunityDesignLink

showCommunityLink

rbtxpert-button-de

rbtxpert-button-us

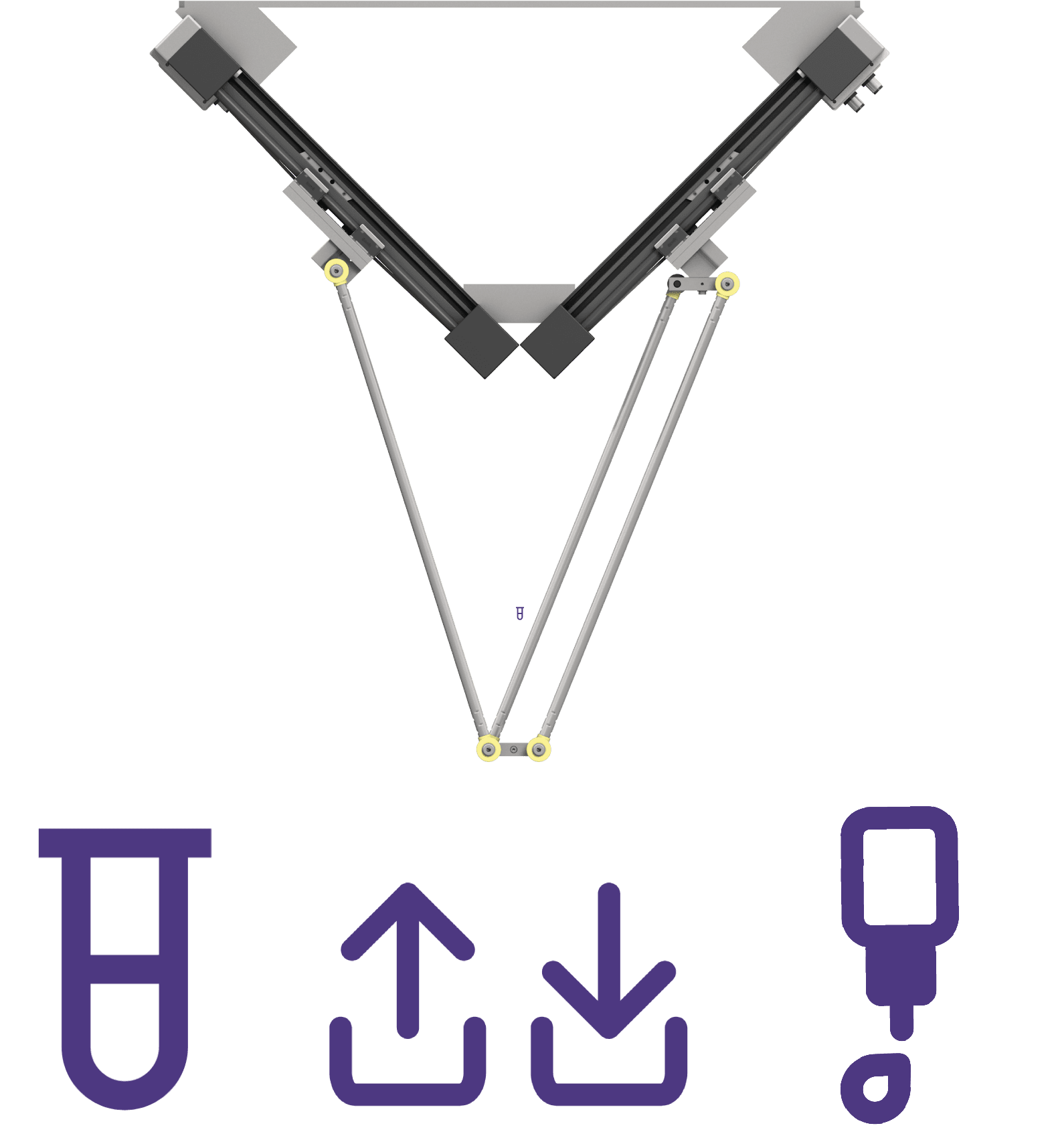

The 2-axis Delta was specially developed for extra fast pick & place tasks. It can be used for pick and place tasks, conveyor belt picking, sorting tasks or stacking tasks. The Delta robot as 2-axis kinematics is supplied in two different sizes with matching controllers.

The weight of an end effector will decrease the available payload of your robot.

2-Axis Delta | Small

Robots

Step & technical drawing

Technical documentation

D1 User manual

Stepper motors

Declaration of incorporation

Typical applications of our drylin® delta robots are pick and place, conveyor belt picking and stacking tasks in three-dimensional space. In combination with a gripper or suction cup, picking tasks can be implemented very quickly.
